90m3/h Concrete Batching Plant

90m3/h Concrete Batching Plant

We suggest air or LCL for small orders and container or bulk vessel for large orders. We usually trade in EX-Works, FOB, CFR and CIF. 30% T/T deposit and 70% T/T balance before shipment or 100% L/C at sight.

  • ≤90m3/hProcessing Capacity
  • 150KWTotal Power
  • JS1500Mixer
 Demand: *Email: *Phone: Send
  • High Efficiency

    The belt advantages are large conveying capacity, continuously work, low impact, simple structure and automatic control.

  • Customized Design

    reliable performance, and pedestrian inspection aisle on both sides of the rack is convenient for maintenance.

  • Good Performance

    The belt conveyor is used for continuous feeding, which is mainly suitable for some large-scale commercial concrete batching plants

Product Features

Suitable for large-scale heavy-duty projects,ensure the aggregate delivery, save time and improve work efficiency.

  • 90m3/h Concrete Batching Plant-Product Features
  • 90m3/h Concrete Batching Plant-High Efficiency
  • 90m3/h Concrete Batching Plant-Customized Design
  • 90m3/h Concrete Batching Plant-Good Performance

Specifications

Model

Belt90

Global parameter
(m3/h)

Maximum productivity

90


Discharging height(m)

4.2


Working cycle time(s)

60


Outline dimension(mm)

58555×12376×
18704


Total power (kw)

145

Mixer

Model

JS1500

Batcher

Model

PLD2400

Pneumatic system

Air compressor

1.8–7


Discharge pressure(MPa)

0.8


Displacement(m3/min)

1.67


Motor power

11

Measurement system

Aggregate weighing accuracy

±2%


Cement weighing accuracy

±1%


Water weighing accuracy

±1%


Additive weighing accuracy

±1%

Total weight

46T

*The actual configuration is subject to the contract subject, the pictures and videos are for reference only*

90m3/h Concrete Batching Plant-XinFeng Machinery Manufacturing-Specifications

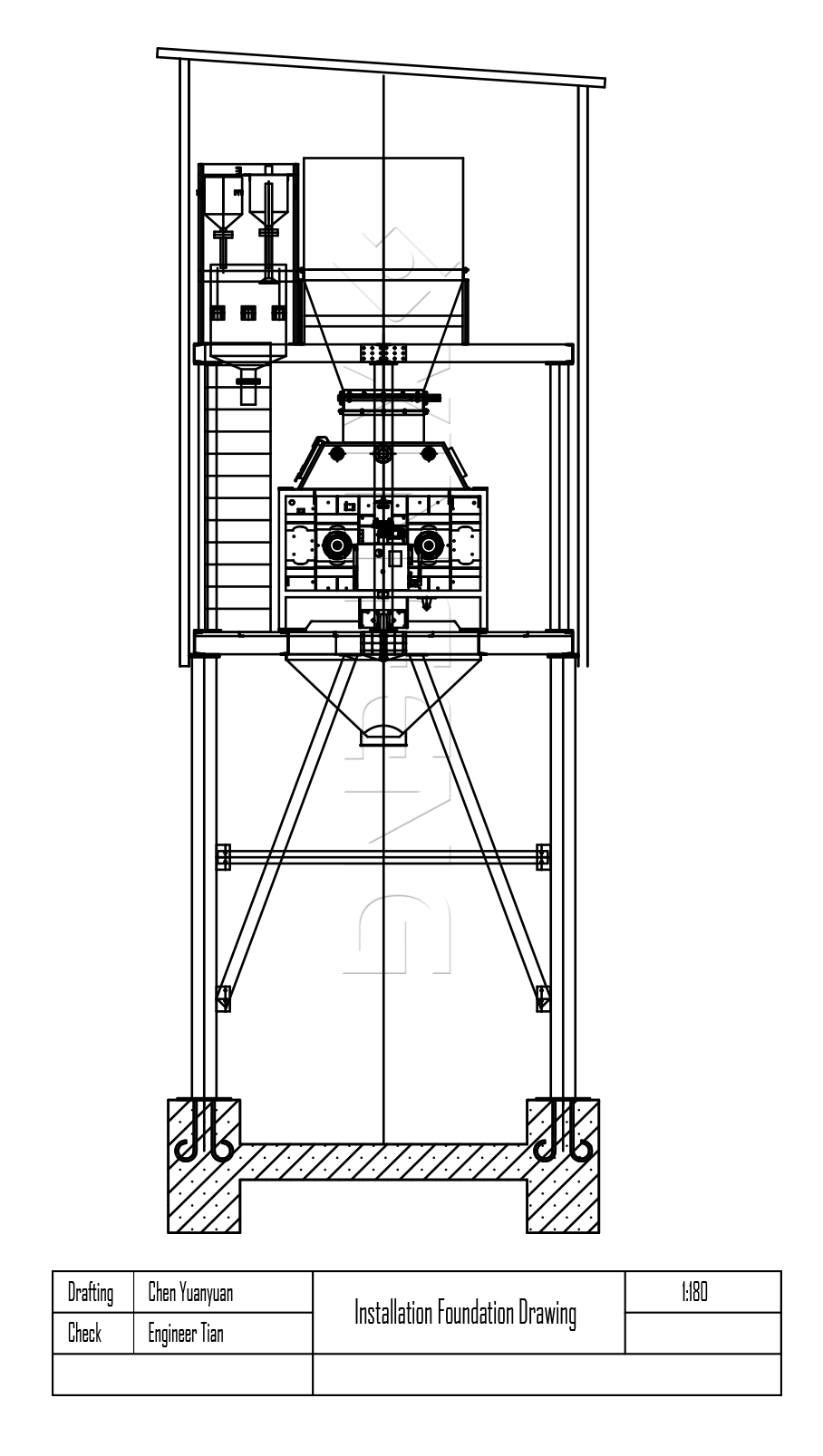

90m3/h Concrete Batching Plant-XinFeng Machinery Manufacturing-Drawings & Videos

Drawings & Videos

Mixing System

●Model :JS1500A

●Discharging capacity :1500L

●Drum capacity: 2400L

●Productivity (m³/h ): 90

●Max.aggregate size(Cobble/Crushed Stone)(mm): ≤60/80

●Operation Recycle Time(S) :60

●Dimension Transport State (mm) :4720*2200*3000

●Weight(kg) :8700

●Mixing Blade Rotate Speed :29.6r/min

●Mixing Blade Number: 2x8

●Water Pump Motor Model:BL18-16-1.1

●Water Pump Motor Power :3kw

●Discharging Height :3800mm

90m3/h Concrete Batching Plant-XinFeng Machinery Manufacturing-Mixing System
90m3/h Concrete Batching Plant-XinFeng Machinery Manufacturing-Aggregate Bunker

Aggregate Bunker

●Separate weighing hoppers :4

●Model:PLD2400

●Volume of Weighing hopper:2400L

●Storage bin capacity:20m³×4

●Productivity(drier):120m³/h

●Batching accuracy:±1%

●Maximum weighing magnitude:4000kg

●Kinds of batching aggregate:24

●Feeding height:3200mm

●Transition belt speed:1.6m/s

●Power (kw):22

●Total weight (kg):7850

●Outline dimension (mm):12328×2200×4122

Belt Сonveyor

●Belt conveyor assembly:Customizable

●Drive:gear motor

●Receiving hopper

●Mounting frame degrees inclination:Customizable

●Driven drum:22KW

●Belt  thickness:Customizable

●Belt width:800mm

●Maintenance platform:6

●Ladder:2

●Belt tensioner:1

●Docking fastener

90m3/h Concrete Batching Plant-XinFeng Machinery Manufacturing-Belt Сonveyor
90m3/h Concrete Batching Plant-XinFeng Machinery Manufacturing-Weighing Hoppers

Weighing Hoppers

●Cement Weighing Capacity:800 kg

●Cement Weighing Loadcells:3 units 500 kg

●Water Weighing Capacity:300 kg

●Water Weighing Loadcells:2 units 500 kg

●Additive Weighing Capacity:50L

●Additive Weighing Loadcells:1 unit 100 kg

Cement Silo(Optional)

●Volume:OPTIONAL(made bolte dorwelded)

●Body:4~5~6mm

●Weight:4~24ton

●Filter:25top area

●Silos protection flap:Patterned skid plate

●Level indicators:2pcs.eachtwo point

●Outrigger diameter:219~325mm

●Feet:NPU 260 profile In each silo 3 pieces Plasticizer jet

●Dust Type:electric

90m3/h Concrete Batching Plant-XinFeng Machinery Manufacturing-Cement Silo(Optional)
90m3/h Concrete Batching Plant-XinFeng Machinery Manufacturing-Control System

Control System

●Inverter Air Conditioner
●Power source
●Mix control terminal
●Input power 380/440 +/- 5%
●Output power 220 and 24 volts
●Automatic control unit
●Software
●Control Board
●Plotter
●PLC
