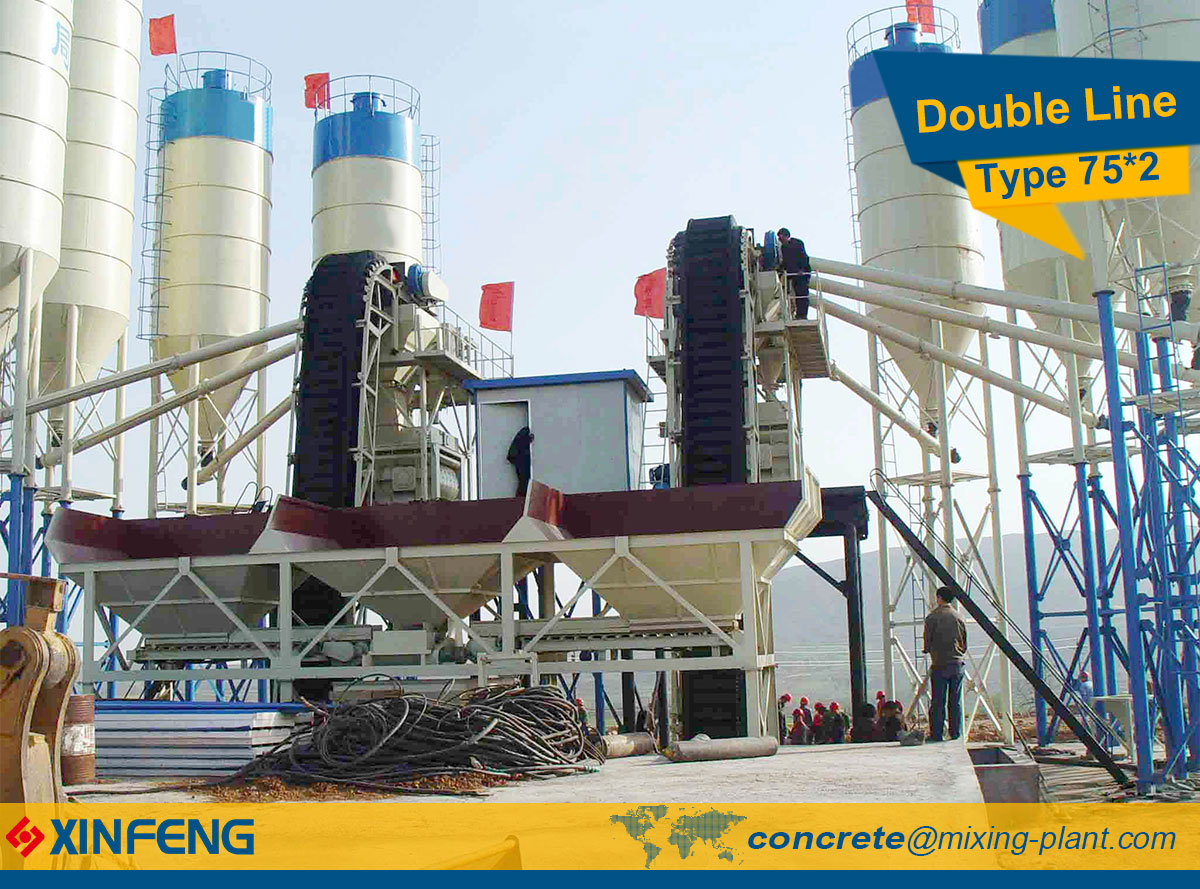

75m³/h Concrete Batching Plant

We suggest air or LCL for small orders and container or bulk vessel for large orders. We usually trade in EX-Works, FOB, CFR and CIF. 30% T/T deposit and 70% T/T balance before shipment or 100% L/C at sight.

≤75m³/hProcessing Capacity
125KWTotal Power
JS1500Mixer

Get Quotes Leave Message

60S Quick response
30 min Technical reply
24h design proposal
[email protected]

　Demand: *Email: *Phone: Send

Small Footprint

Saving on the Land space of the construction site allocated for the installation of concrete batching plant.
Reduces The Cost

The cost of the skip hoist batching plant is much less than the cost of the conveyor belt batching plant
Easy to install and use

This feature allows skip hoist concrete plants to take the place of one of the modern standards for concrete production.

Product Features

Very suitable for small engineering projects, easy to operate and maintain, reduced labor

Specifications

Model		Skip Hoist75
Global parameter	Maximum productivity (m³/h)	75
	Discharging height (m)	4.2
	Working cycle time(s)	72
	Outline dimension(mm)	17608×12500× 18704
	Total power (kw)	110
Mixer	Model	JS1500
Batcher	Model	PLD2400
Pneumatic system	Air compressor	1.8–7
	Discharge pressure(MPa)	0.8
	Displacement (m³/min)	1.67
	Motor power	11
Measurement system	Aggregate weighing accuracy	±2%
	Cement weighing accuracy	±1%
	Water weighing accuracy	±1%
	Additive weighing accuracy	±1%

*The actual configuration is subject to the contract subject, the pictures and videos are for reference only*

75m3/h Concrete Batching Plant-XinFeng Machinery Manufacturing-Specifications

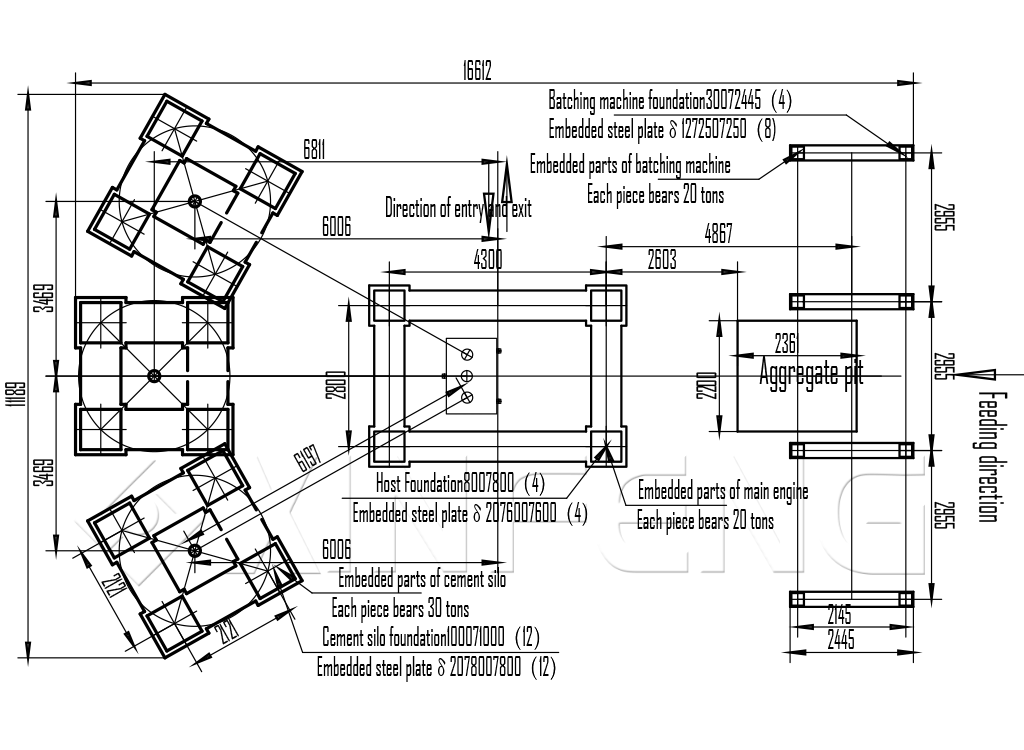

Drawings & Videos

Mixing System

●Model:JS1500A

●Discharging capacity:1500L

●Drum capacity:2400L

●Productivity(m³/h):≤75

●Max.aggregatesize(Cobble/CrushedStone)(mm):≤60/80

●Operation Recycle Time(S):60

●Dimension Transport State(mm):4720*2200*3000

●Dimension Work State(mm):8700

●Weight(kg):29.6r/min

●Mixing Blade Rotate Speed:2x8

●Mixing Blade Number:BL18-16-1.1

●Water Pump Motor Model:3kw

●Water Pump Motor Power:3800mm

75m3/h Concrete Batching Plant-XinFeng Machinery Manufacturing-Mixing System

Aggregate Bunker

●accumulated weighing hoppers:4

●Model:PLD2400

●Volume of Weighing hopper:2400L

●Storagebin capacity:20m³×4

●Productivity(drier):120m³/h

●Batching accuracy:±1%

●Maximum weighing magnitude:4000kg

●Kindsof batching aggregate:24

●Feeding height:3200mm

●Transition belt speed:1.6m/s

●Power(kw):22

●Total weight(kg):7850

●Outline dimension(mm):12328×2200×4122

Aggregate Weighing Hopper

●Bunker capacity:2400L

●The bunker body is made of ST-37 A1 quality 5 mm sheet metal, its top is reinforced to prevent abrasion.

●Channel width:160mm

●Vibromotor:15kW.

●Raillength:4800mm

●Discharging Height:2000_4200mm

75m3/h Concrete Batching Plant-XinFeng Machinery Manufacturing-Aggregate Weighing Hopper

Weighing Hoppers

●Cement Weighing Capacity:800kg

●Cement Weighing Load cells:3units500kg

●Water Weighing Capacity:300kg

●Water Weighing Load cells:2units500kg

●Additive Weighing Capacity:50L

●Additive Weighing Load cells:1unit100kg

Cement Silo(Optional)

●Volume:OPTIONAL(made bolte dorwelded)

●Body:4~5~6mm

●Weight:4~24ton

●Filter:25㎡top area

●Silo’s protection flap:Patterned skid plate

●Level indicators:2pcs.each（two point）

●Outrigger diameter:219~325mm

●Feet:NPU 260 profile In each silo 3 pieces Plasticizer jet

●Dust Type:electric

75m3/h Concrete Batching Plant-XinFeng Machinery Manufacturing-Cement Silo(Optional)

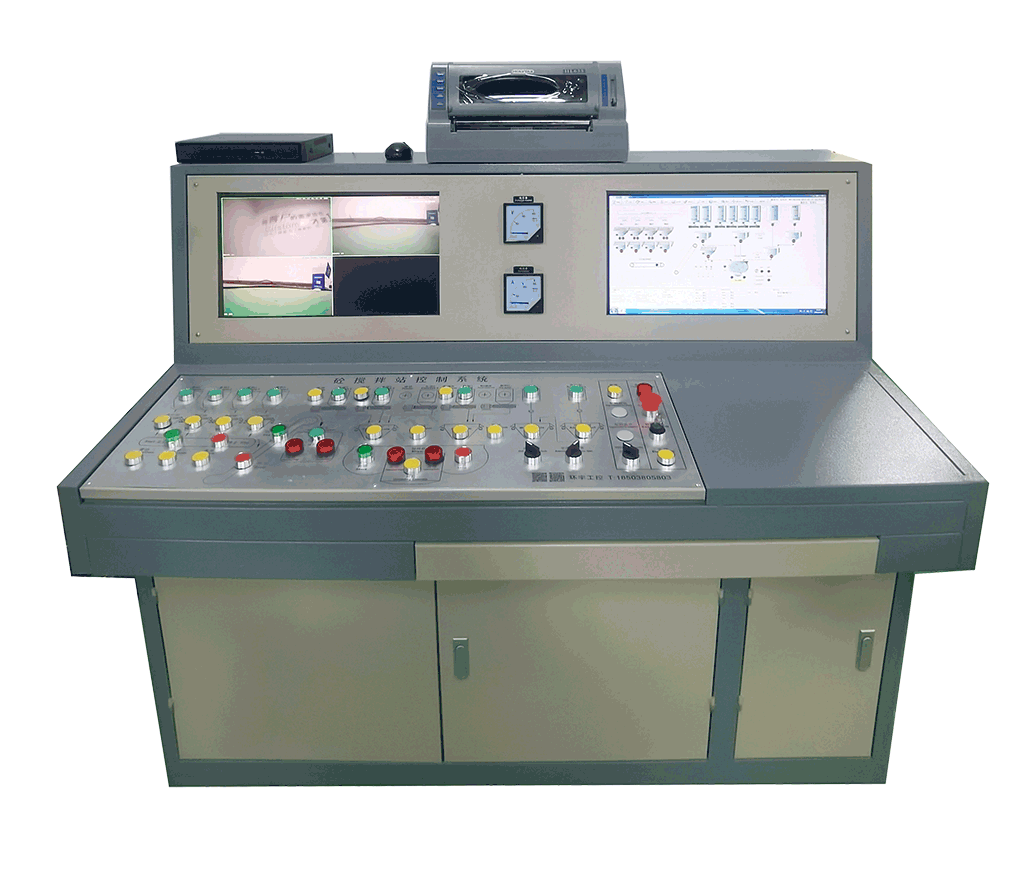

Control System

●Inverter Air Conditioner
●Power source
●Mix control terminal
●Input power 380/440 +/- 5%
●Output power 220 and 24 volts
●Automatic control unit
●Software
●Control Board
●Plotter
●PLC
