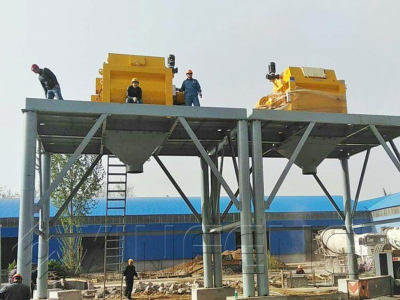

Double 35m³/h Batching Plant

We suggest air or LCL for small orders and container or bulk vessel for large orders. We usually trade in EX-Works, FOB, CFR and CIF. 30% T/T deposit and 70% T/T balance before shipment or 100% L/C at sight.

≤35*2m³/hProcessing Capacity
75*2KWTotal Power
JS750*2Mixer

Get Quotes Leave Message

60S Quick response
30 min Technical reply
24h design proposal
[email protected]

　Demand: *Email: *Phone: Send

High Quality

Compared with a single-line batching plant, the output is doubled, but the staffing does not need to be doubled
Wide Range Of Use

It can produce concrete with different ratios at the same time to meet the various needs of engineering construction
Good Performance

When one equipment fails, the other can operate normally without delaying the project deadline

Product Features

On the premise of ensuring engineering efficiency, it saves money to a great extent and improves resource utilization.

Specifications

Model		Double35
Global parameter	Maximum productivity (m³/h)	70
	Discharging height (m)	1.6–4.2
	Working cycle time(s)	72
	Total power (kw)	75*2
Mixer	Model	JS750*2
Batcher	Model	PLD1200*2
Pneumatic system	Air compressor	1.0–7
	Discharge pressure (MPa)	0.8
	Displacement (m³/min)	1.67
	Motor power	5.5*2
Measurement system	Aggregate weighing accuracy	±2%
	Cement weighing accuracy	±1%
	Water weighing accuracy	±1%
	Additive weighing accuracy	±1%
Total weight		46T

*The actual configuration is subject to the contract subject, the pictures and videos are for reference only*

Double 35m3/h Batching Plant-XinFeng Machinery Manufacturing-Specifications

Drawings & Videos

Mixing System

●Model:JS750*2

●Discharging capacity:750L

●Drum capacity:1200L

●Productivity (m³/h ):≤35

●Max.aggregate size(Cobble/Crushed Stone)(mm):≤40/60

●Operation Recycle Time(S):72

●Dimension Transport State (mm):3110*2620*2580

●Dimension Work State (mm):5025*3100*5680

●Weight(kg):5500

●Mixing Blade Rotate Speed:26r/min

●Mixing Blade Number:2x7

●Water Pump Motor Model:BL18-16-1.1

●Water Pump Motor Power:1.5kw

●Discharging Height:3800mm

Double 35m3/h Batching Plant-XinFeng Machinery Manufacturing-Mixing System

Aggregate Bunker

●Accumulated weighing hoppers: 3

●Model: PLD1200*2

●Volume of Weighing hopper: 1200L

●Storage bin capacity: 2.4m³×3

●Productivity(drier): 60m³/h

●Batching accuracy: ±1%

●Maximum weighing magnitude: 3000kg

●Kinds of batching aggregate: 23

●Feeding height: 3000mm

●Transition belt speed: 1.25m/s

●Power (kw): 3×4=12

●Total weight (kg): 4500

●Outline dimension (mm): 9000×2000×3500

Aggregate Weighing Hopper

●Bunker capacity:1200L

●The bunker body is made of ST37 A1 quality 5 mm sheet metal, its top is reinforced to prevent abrasion.

●Channel width:140mm

●Vibro motor:7.5kW .

●Rail length:4800mm

●Discharging Height:2000-4200mm

Double 35m3/h Batching Plant-XinFeng Machinery Manufacturing-Aggregate Weighing Hopper

Weighing Hoppers

●Cement Weighing Capacity:600 kg

●Cement Weighing Loadcells:3 units 500 kg

●Water Weighing Capacity:300 kg

●Water Weighing Loadcells:2 units 500 kg

●Additive Weighing Capacity:2 x 20 lt

●Additive Weighing Loadcells:1 unit 100 kg

Cement Silo(Optional)

●Volume:OPTIONAL(made bolte dorwelded)

●Body:4~5~6mm

●Weight:4~24ton

●Filter:25㎡top area

●Silo’s protection flap:Patterned skid plate

●Level indicators:2pcs.each（two point）

●Outrigger diameter:219~325mm

●Feet:NPU 260 profile In each silo 3 pieces Plasticizer jet

●Dust Type:electric

Double 35m3/h Batching Plant-XinFeng Machinery Manufacturing-Cement Silo(Optional)

Control System

●Inverter Air Conditioner
●Power source
●Mix control terminal
●Input power 380/440 +/- 5%
●Output power 220 and 24 volts
●Automatic control unit
●Software
●Control Board
●Plotter
●PLC
