Double 180m3/h Batching Plant

Double 180m3/h Batching Plant

We suggest air or LCL for small orders and container or bulk vessel for large orders. We usually trade in EX-Works, FOB, CFR and CIF. 30% T/T deposit and 70% T/T balance before shipment or 100% L/C at sight.

  • ≤180*2 m3/hProcessing Capacity
  • 260*2 KWTotal Power
  • JS3000Mixer
 Demand: *Email: *Phone: Send
  • High Quality

    Compared with a single-line batching plant, the output is doubled, but the staffing does not need to be doubled

  • Wide Range Of Use

    It can produce concrete with different ratios at the same time to meet the various needs of engineering construction

  • Good Performance

    When one equipment fails, the other can operate normally without delaying the project deadline

Product Features

On the premise of ensuring engineering efficiency, it saves money to a great extent and improves resource utilization.

  • Double 180m3/h Batching Plant-Product Features
  • Double 180m3/h Batching Plant-High Quality
  • Double 180m3/h Batching Plant-Wide Range Of Use
  • Double 180m3/h Batching Plant-Good Performance

Specifications

Model

Double180

Global
parameter

Maximum productivity
 (m3/h)

360

Discharging height (m)

4.5

Working cycle time(s)

60

Total power (kw)

288*2

Mixer

Model

JS3000*2

Batcher

Model

PLD4800*2

Pneumatic
system

Air compressor

1.8–7

Discharge pressure
(MPa)

0.8

Displacement (m3/min)

1.67

Motor power

11×2 *2

Measurement
system

Aggregate weighing
accuracy

±2%

Cement weighing
 accuracy

±1%

Water weighing
accuracy

±1%

Additive weighing
accuracy

±1%

Total weight

140T

*The actual configuration is subject to the contract subject, the pictures and videos are for reference only*

Double 180m3/h Batching Plant-XinFeng Machinery Manufacturing-Specifications
Double 180m3/h Batching Plant-XinFeng Machinery Manufacturing-Drawings & Videos

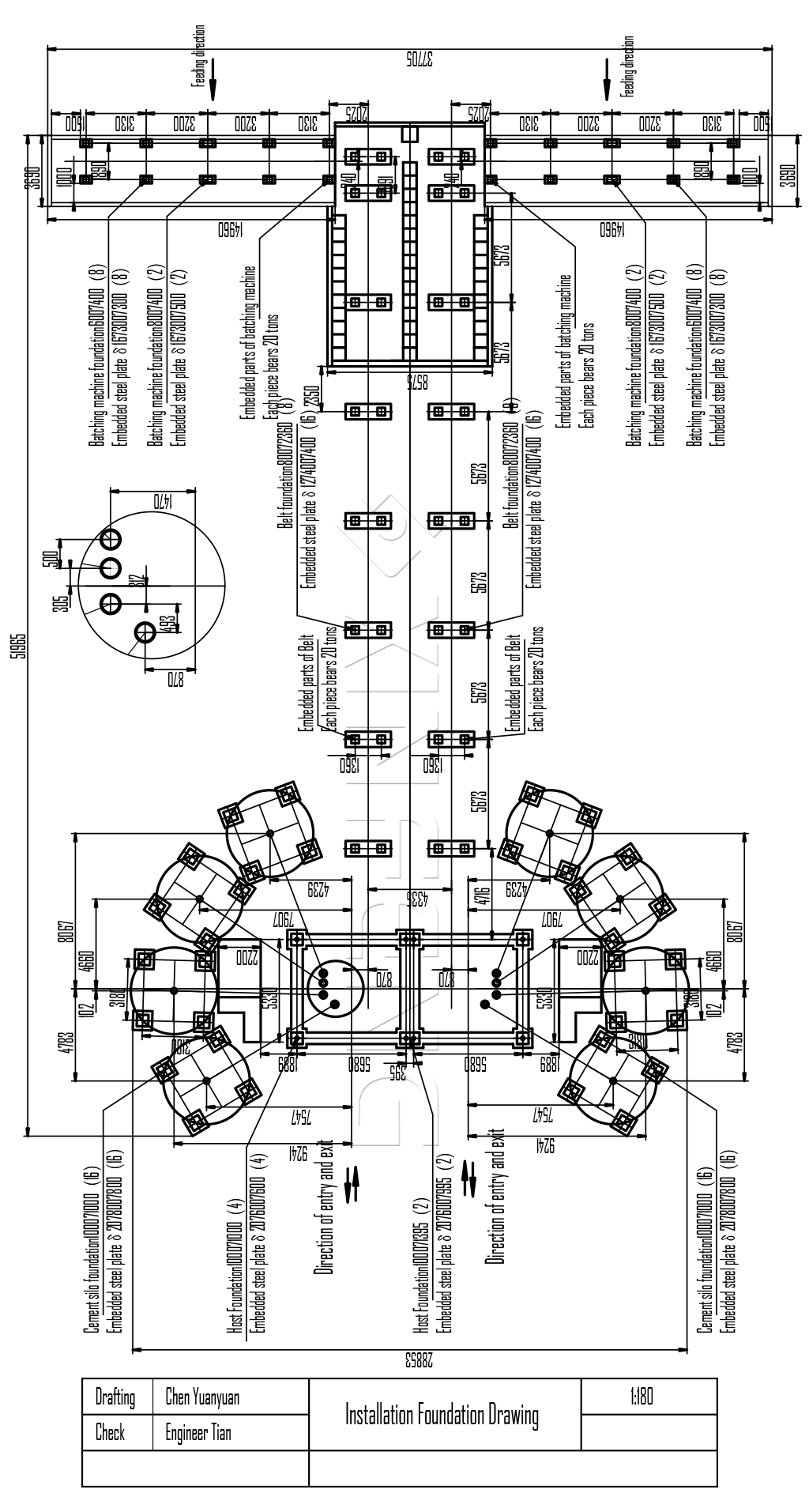

Drawings & Videos

Mixing System

●Model:JS3000*2

●Discharging capacity:3000L

●Drum capacity:4800L

●Productivity (m³/h ):180

●Max.aggregate size(Cobble/Crushed Stone)(mm):≤80/120

●Operation Recycle Time(S):60

●Dimension Transport State (mm):4050*2680*2150

●Weight(kg):9200

●Mixing Blade Rotate Speed:29.5r/min

●Mixing Blade Number:2x10

●Mixing Motor Model:Y280L6

●Mixing Motor Power:2x55

●Discharging Height:4300mm

Double 180m3/h Batching Plant-XinFeng Machinery Manufacturing-Mixing System
Double 180m3/h Batching Plant-XinFeng Machinery Manufacturing-Aggregate Bunker

Aggregate Bunker

●separate weighing hoppers:4

●Model:PLD4800*2

●Volume of Weighing hopper:4800L

●Storage bin capacity:30m³×4

●Productivity(drier):280m³/h

●Batching accuracy:±1%

●Maximum weighing magnitude:6000kg

●Kinds of batching aggregate:24

●Feeding height:3600mm

●Transition belt speed:1.6m/s

●Power (kw):22

●Total weight (kg):10200

●Outline dimension (mm):15520×3900×5090

Belt Сonveyor

●Belt conveyor assembly:Customizable

●Drive:gear motor

●Receiving hopper

●Mounting frame degrees inclination:Customizable

●Driven drum:37KW

●Belt  thickness:Customizable

●Belt width:1200mm

●Maintenance platform:6

●Ladder:2

●Belt tensioner:1

●Docking fastener

Double 180m3/h Batching Plant-XinFeng Machinery Manufacturing-Belt Сonveyor
Double 180m3/h Batching Plant-XinFeng Machinery Manufacturing-Weighing Hoppers

Weighing Hoppers

●Cement Weighing Capacity:1500 kg

●Cement Weighing Loadcells:3 units 100 kg

●Water Weighing Capacity:800 kg

●Water Weighing Loadcells:3 units 1000 kg

●Additive Weighing Capacity:100L

●Additive Weighing Loadcells:3 unit 50 kg

Cement Silo(Optional)

●Volume:OPTIONAL(made bolte dorwelded)

●Body:4~5~6mm

●Weight:4~24ton

●Filter:25top area

●Silos protection flap:Patterned skid plate

●Level indicators:2pcs.eachtwo point

●Outrigger diameter:219~325mm

●Feet:NPU 260 profile In each silo 3 pieces Plasticizer jet

●Dust Type:electric

Double 180m3/h Batching Plant-XinFeng Machinery Manufacturing-Cement Silo(Optional)
Double 180m3/h Batching Plant-XinFeng Machinery Manufacturing-Control System

Control System

●Inverter Air Conditioner
●Power source
●Mix control terminal
●Input power 380/440 +/- 5%
●Output power 220 and 24 volts
●Automatic control unit
●Software
●Control Board
●Plotter
●PLC
