Compact 120m³/h Batching Plant

We suggest air or LCL for small orders and container or bulk vessel for large orders. We usually trade in EX-Works, FOB, CFR and CIF. 30% T/T deposit and 70% T/T balance before shipment or 100% L/C at sight.

≤120m³/hProcessing Capacity
150KWTotal Power
JS2000Mixer

Get Quotes Leave Message

60S Quick response
30 min Technical reply
24h design proposal
[email protected]

　Demand: *Email: *Phone: Send

Fast Installation And Startup

Designed to minimize work on site during installation and is plumbed and tested at the manufacturing facilities. compact concrete plant can be normally installed within 1 day.
Tested At The Factory

The modularly constructed plant comes fully ready from the factory. This minimizes installation work on site.
Minimum Foundation Works

We review all resources needed to install the concrete plant and a detailed plan to help our customers budget for commissioning costs.

High Mobility/Easy Transport

Designed to fit into two standard trucks or two 40FT open top containers

Specifications

Model		COMPACT-120
PRODUCTION CAPACITY(m³/h)		100-120
MIXER TYPE		Twin Shaft
MIXER CAPACITY(m³/h)		2
LOADING TYPE		Belt
AGGREGATE BUNKER(m³)		4x18
Pneumatic system	Air compressor	1.0–7
	Discharge pressure(MPa)	0.8
	Displacement (m³/min)	1.67
	Motor power	5.5
Measurement system	Aggregate weighing accuracy	±2%
	Cement weighing accuracy	±1%
	Water weighing accuracy	±1%
	Additive weighing accuracy	±1%
CONTROL SYSTEMS		Customizable

*The actual configuration is subject to the contract subject, the pictures and videos are for reference only*

Compact 120m3/h Batching Plant-XinFeng Machinery Manufacturing-Specifications

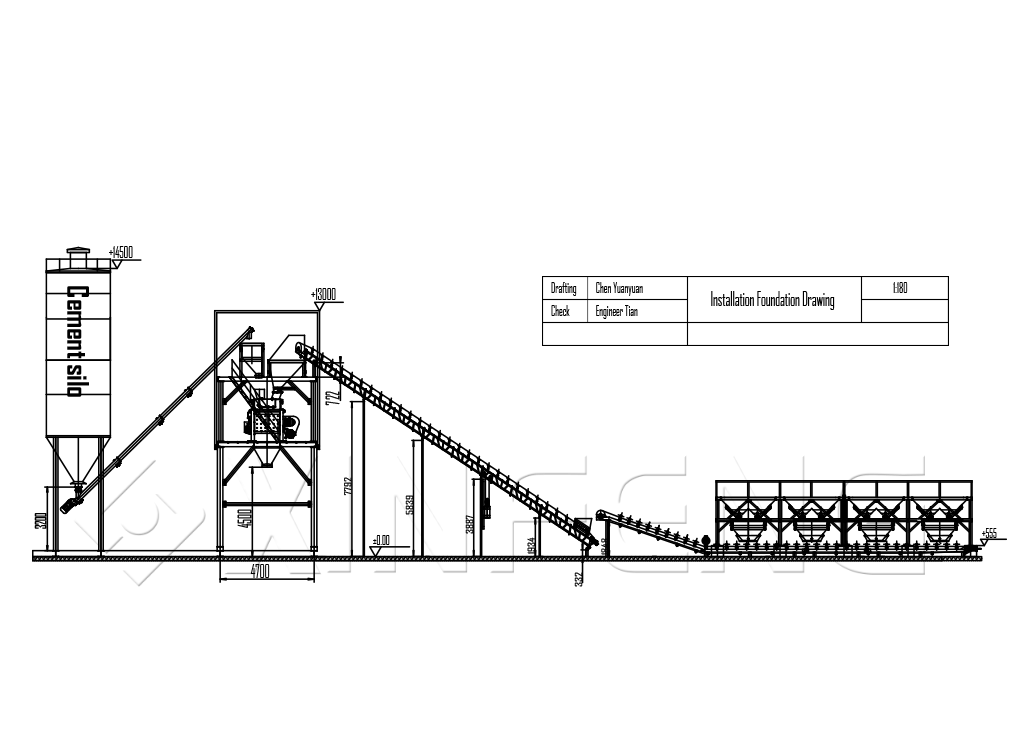

Drawings & Videos

Mixing System

●Model:JS2000

●Discharging capacity:2000L

●Drum capacity:3200L

●Productivity (m³ /h ):≤120

●Max.aggregate size(Cobble/Crushed Stone)(mm):≤80/100

●Operation Recycle Time(S):60

●Dimension Transport State (mm):3500*2400*2152

●Weight(kg):7500

●Mixing Blade Rotate Speed:29.5r/min

●Mixing Blade Number:2x8

●Mixing Motor Model:Y250M6

●Mixing Motor Power:2x37

●Discharging Height:4300mm

Compact 120m3/h Batching Plant-XinFeng Machinery Manufacturing-Mixing System

Aggregate Bunker

●separate weighing hoppers:4

●Model:PLD3200

●Volume of Weighing hopper:3200L

●Storage bin capacity:25m³×4

●Productivity(drier):160m³/h

●Batching accuracy:±1%

●Maximum weighing magnitude:4600kg

●Kinds of batching aggregate:24

●Feeding height:3200mm

●Transition belt speed:1.6m/s

●Power (kw):22

●Total weight (kg):9600

●Outline dimension (mm):13228×3250×4122

Belt Сonveyor

●Belt conveyor assembly:Customizable

●Drive:gear motor

●Receiving hopper

●Mounting frame degrees inclination:Customizable

●Driven drum:30KW

●Belt thickness:Customizable

●Belt width:1000mm

●Maintenance platform6

●Ladder2

●Belt tensioner:1

●Docking fastener

Compact 120m3/h Batching Plant-XinFeng Machinery Manufacturing-Belt Сonveyor

Weighing Hoppers

●Cement Weighing Capacity:1000 kg

●Cement Weighing Loadcells:3 units 1000 kg

●Water Weighing Capacity:600 kg

●Water Weighing Loadcells:3 units 500 kg

●Additive Weighing Capacity:80L

●Additive Weighing Loadcells:1 unit 100 kg

Cement Silo(Optional)

●Volume:OPTIONAL(made bolte dorwelded)

●Body:4~5~6mm

●Weight:4~24ton

●Filter:25㎡top area

●Silo’s protection flap:Patterned skid plate

●Level indicators:2pcs.each（two point）

●Outrigger diameter:219~325mm

●Feet:NPU 260 profile In each silo 3 pieces Plasticizer jet

●Dust Type:electric

Compact 120m3/h Batching Plant-XinFeng Machinery Manufacturing-Cement Silo(Optional)

Control System

●Inverter Air Conditioner
●Power source
●Mix control terminal
●Input power 380/440 +/- 5%
●Output power 220 and 24 volts
●Automatic control unit
●Software
●Control Board
●Plotter
●PLC
